ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery

China ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery supplier
ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery supplier ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery supplier ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery supplier ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery supplier

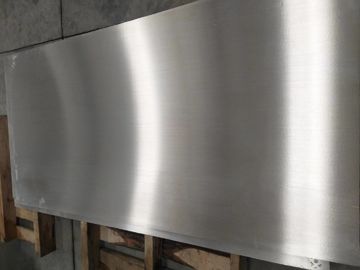

Large Image :  ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery

Product Details:

Place of Origin: CHINA
Brand Name: YUECHEN METAL
Certification: SGS, TUV
Model Number: AZ31B

Payment & Shipping Terms:

Minimum Order Quantity: 1kg
Price: 10-50USD per kg
Packaging Details: PLYWOOD, CARTON
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 100TONNE PER MONTH
Contact Now
Detailed Product Description
DAMPING: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability. TOOLING: 4 To 5 Times Greater Tool Life.
FINISH: Up To 5 Times More Machinable Than Rolled Aluminum. CORROSION RESISTANT: CORROSION RESISTANT
Tensile Strength, Ultimate,: MPa 340 Weldability: Excellent With Gas Shielded Arc
Machining: Machines Faster Than Any Other Metal Hardness: H24 Temper: 83 Rockwell E
Specification: ASTM B91

ZK60A

ZK60A is a wrought magnesium base alloy containing zinc and zirconium. Increased strength is obtained by artificial aging from the as-fabricated form. ZK60A-T5 has the best combination of strength and ductility at room-temperature of the wrought magnesium alloys.



APPLICATIONS

Forgings and extrusions in ZK60A find application in high strength parts for use primarily where the service temperature is below 150°C. ZK60A forgings can be used where pressure tightness or machinability are required. That parts are dimensionally stable during and after machining is also an important design consideration.

Forgings and extrusions in ZK60A find application in high strength parts for satellites, helicopter gearboxes and rotor hubs, bicycle frames, roadwheels, missle frames and interstage fairings, brake housings and landing gear struts.



SPECIFICATIONS

ASTM B91

ASTM B107/B107M-13



CHEMICAL COMPOSITION

Zinc 4.8-6.2%

Zirconium 0.45% min

Magnesium Balance



Dimension Scope

Forgings: Max. length 1000mm, max. width 500mm, max thickness 330mm.

Extrusions: Diameter 6mm - 180mm for round bar; thickness and width 10-220mm for square/rectangular section. Length: 100mm - 6000mm

Thickness and width are inter-dependant.



HEAT TREATMENT

As-fabricated (F) forgings can be converted to the precipitation treated temper (T5) by heating to 150°C for 24 hours, followed by air cooling.



PHYSICAL PROPERTIES

Specific Gravity 1.83

Coefficient of Thermal Expansion 27.1x10 -6 K -1

Thermal Conductivity 121 Wm -1 K -1

Specific Heat 1100 Jkg -1 K -1

Electrical Resistivity 57 nΩm

Modulus of Elasticity 45GPa

Poissons Ratio 0.35

Melting Range 520-635°C



TYPICAL HARDNESS

ZK60A-T6 85 Rockwell E

ZK60A-T5 77 Rockwell E



WELDABILITY

ZK60A is not considered to be weldable by conventional techniques due to hot-shortness cracking. However, resistance welding response is excellent. Friction stir welding can be used to join ZK60A to itself and other magnesium alloys.



MACHINING

ZK60A, like all magnesium alloy forgings, machines faster than any other metal. Providing the geometry of the part allows, the limiting factor is the power and speed of the machine rather than the quality of the tool material. The power required per cubic centimeter of metal removed varies from 9 to 14 watts per minute depending on the operation.



SURFACE TREATMENT

All the normal chromating, anodizing, plating, and finishing treatments are readily applicable.

ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery

Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.

We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.

Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.



Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer
s design

7. Magnesium anode as per customer’s design



Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.



Looking forward to your enquiry and hope a prosperous cooperation can be established between us.ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery

Applications of our extruded products:

The special characteristics of magnesium such as its light weight and damping capacity make it therefore, a material that is readily used in several different applications.

Automotive

Engine blocks Steering column parts Seat components
Bed plates Brake and pedal brackets Roof panels
Transmission houses Airbag retainers Fuel tank covers
Transfer cases Radio frames + heatsinks Engine hoods
Head covers Radio covers Rear deck lids
Oil pans Mirror brackets Full magnesium doors
Knee bolsters Door handles Wheels
Steering wheels Front ends Radiator supports



Sport and Leisure

Luggage frames Suit cases Tennis rackets
Bicycle frames Camping equipment Snowshoes
Mountain bike frames Eyewear frames Bull floats



Common applications

Cellular phones Multi-media housings Camcorders
Antenna housing Camera Housings Electric shavers
Loudspeaker frames Projector frames Printers
Laptop Housings Batteries Headphones
Train Seats Aviation components Turbine engines
Truss constructions Cargo floors Powertools
Chain saws Concrete trowels Wall saws
Ladders Scaffoldings Shelves


ZK60A-T5 magnesium alloy plate disc bar block with high strength and competitive price and fast delivery



Our Advantage


Engraving process of magnesium board, cutting force, cutting energy consumption is low, less heat in the carving process, chip breaking, tool wear, prolong life, therefore, magnesium board for high-speed, high cutting the amount of cutting and engraving, which offset the magnesium plate engraving of higher price weakness in a certain extent.



Magnesium plate adopts the carving process of high speed cutting, has the following characteristics:

The feed speed engraving cutter can be improved more than 6 times; material removal rate can be increased by 5-6 times;
Magnesium aluminum plate surface roughness is greatly increased, up to 10 μ m;
Generally, carving cutting resistance magnesium plate to reduce the 1/3;
Magnesium plate engraving after hot deformation is low, can limit the work hardening;
Engraving tool durability increased nearly one times;
Magnesium plate engraving processing time can be significantly reduced, directly led to reduced processing cost;



Cutting resistance magnesium plate of small, good thermal conductivity, heat quickly, so the cutting speed is very fast, very few sticky knife. Engraving and cutting tool life is long, and shortens the required tool replacement in the carving process downtime



Advantage
Full range of product types, Ensure production capacity:
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage:
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.

Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
