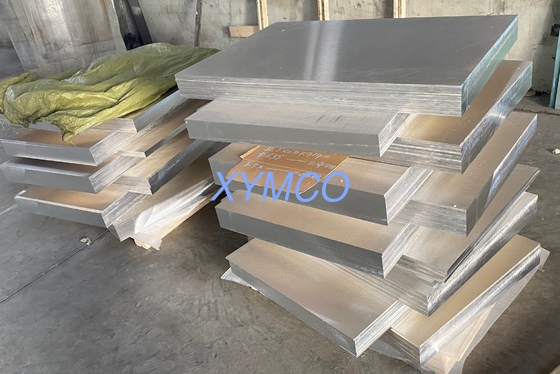

AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension

We have cooperated with Xi'an Yuechen Metal Products Co., Ltd. more than 8years, their quality of magneisum tooling plate is good, delivery time is fast. We hope have a long term cooperation.

—— James Mokendre

We want to extend our sincere gratitude for all your support. Especially, for all the impossible projects you successfully quoted and completed. This year had a lot of ups and downs. we hope in 2020 we will see some growth again.

—— Ramesh Kalla

Hi Frank The test results from the last campaign are very good, you made an excellent job concerning the finishing and magnesium quality, we found some minimal differences concerning the alloy but at the moment seems like isn’t affecting the etching quality. We will place a new order soon, thanks for your support and efforts.

—— Jordan Barry

I'm Online Chat Now

AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension

China AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension supplier
AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension supplier AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension supplier AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension supplier AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension supplier AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension supplier

Large Image :  AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension

Product Details:

Place of Origin: CHINA
Brand Name: YUECHEN METAL
Certification: SGS, TUV
Model Number: AZ31B

Payment & Shipping Terms:

Minimum Order Quantity: 1kg
Price: 10-50USD per kg
Packaging Details: Plywood case
Delivery Time: 7days
Payment Terms: T/T, D/P
Supply Ability: 200tonne per month
Contact Now
Detailed Product Description
DAMPING: Absorbs Vibration For Longer Life, While Retaining Dimensional Stability TOOLING: 4 To 5 Times Greater Tool Life.
COSTS: Machine Dry, Without Oil Or Chemicals. FLATNESS: Eliminates Surface Machining.
STABILITY: No Stress Relief After Machining; No Warps And Is Dent Resistant. STRENGTH: Excellent Strength And Stiffness Per Unit Weight

Magnesium Tooling Plate sheet for CNC engraving



Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) produces the magnesium tooling plate with the surface machining and polishing, the available dimension range:



Thickness: 6mm – 300mm

Width: Max. 2000mm

Length: 4000mm

Tolerances: -0/+3mm for thickness, width and length



Magnesium Tooling Plate Flatness Tolerances

Max. deviation from flat as measured by a straight edge placed on plate surface.

Specified Plate Gauge Max. allowed deviation from flat
Over (mm) Thru (mm) In any 300mm In any 1500mm In any 2000mm
6.3 25 0.125mm 0.31mm 0.42mm
25 150 0.250mm
Specified Plate Gauge Typical tooling plate deviation from flat
Over (mm) Thru (mm) In any 300mm In any 1500mm In any 2000mm
6.3 25 0.077mm 0.15mm 0.19mm
25 150 0.125mm 0.21mm 0.28mm

Other sizes are available subject to enquiry, up to a maximum per plate weight of 2000kg.

Maximum gauge: 300mm; Maximum width 2000mm; Maximum length: 5000mm



STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE

GAUGE TOLERANCES WIDTH TOLERANCES LENGTH TOLERANCES
Specified Gauge Tolerance Specified Width Tolerance Specified Width Tolerance
Over Thru Over Thru Over Thru
6.3 19mm +/-0.25mm 0 250mm +4.75mm 0 250mm +4.75mm
19 32mm +/-0.43mm 250 1220mm +9.50mm 250 1220mm +9.50mm
32 50mm +/-0.64mm 1220 1825mm +12.7mm 1220 1825mm +12.7mm
50 75mm +/-1.25mm 1825 1950mm +15.9mm 1825 6000mm +15.9mm
75 83mm +/-1.65mm - - - - - -
83 90m +/-2.00mm - - - - - -
90 100mm +/-2.80mm - - - - - -
100 125mm +/-3.20mm - - - - - -
125 150mm +/-3.40mm - - - - - -
150 175mm +/-3.705mm - - - - - -



TOOLING PLATES STANDARD METRIC SIZES

6.35 x 1250 x 2500mm 20 x 1500 x 4000mm 50 x 1500 x 4000mm
6.35 x 1250 x 4000mm 25 x 1250 x 2500mm 60 x 1250 x 2500mm
10 x 1250 x 2500mm 25 x 1250 x 4000mm 60 x 1250 x 4000mm
10 x 1250 x 4000mm 25 x 1500 x 4000mm 60 x 1500 x 4000mm
12.7 x 1250 x 2500mm 30 x 1250 x 2500mm 75 x 1250 x 2500mm
12.7 x 1250 x 4000mm 30 x 1250 x 4000mm 75 x 1250 x 4000mm
12.7 x 1500 x 4000mm 30 x 1500 x 4000mm 75 x 1500 x 4000mm
15 x 1250 x 2500mm 40 x 1250 x 2500mm 100 x 1250 x 2000mm
15 x 1250 x 4000mm 40 x 1250 x 4000mm 125 x 1250 x 2000mm
15 x 1500 x 4000mm 40 x 1500 x 4000mm 150 x 1250 x 1500mm
20 x 1250 x 2500mm 50 x 1250 x 2500mm
20 x 1250 x 4000mm 50 x 1250 x 4000mm



APPLICATION

Those applications requiring a flat surface or high dimensional stability benefit from the use of magnesium tooling plate. Typical uses included jigs, fixtures, optical benches, vibration test equipment and inspection gauges. Magnesium Tooling Plate is non-magnetic and has high electrical and thermal conductivity filling many material requirements in the electronics and computer industries.



MAGNESIUM TOOLING PLATE is specially produced to provide a flat plate surface with moderate strength and ductility. The production process results in plate with exceptional dimensional stability in machining and remains stable over time. There is sufficient ductility for limited room temperature forming combined with weldability to allow the manufacture of a multitude of complex parts. Wrought magnesium tooling plate (Alloy AZ31B) has the following benefits and characteristics:

DAMPING Absorbs vibration for longer life, while retaining dimensional stability.
TOOLING 4 to 5 times greater tool life.
FINISH Up to 5 times more machinable than rolled aluminum.
COSTS Machine dry, without oil or chemicals.
WEIGHT Easier handling saves energy and time.
FLATNESS Eliminates surface machining.
STABILITY No stress relief after machining; no warps and is dent resistant.
WELDING Strong weldments up to 95% of parent metal, with minimal porosity.
ALKALI-RESISTANT Makes for easy cleaning.
CORROSION RESISTANT A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion.
STRENGTH Excellent strength and stiffness per unit weight.
NON-GALLING Sound and rugged surface, offering a low coefficient of friction and minimum wear,

REPID HEAT

DISSIPATION

Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit.
NONMAGNETIC Good for electrical and computer applications.

UNIT VOLUME

YIELD

Greater amount of finished magnesium material obtained, pound for pound.
SALVAGE Scrap retains a consistently high level of value.

AZ31 Magnesium cnc engraving plate AZ31B sheet AZ31B-H24 tooling plate sheet CNC engraving plate 1-7x610x914mm dimension

XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) a leading manufacturer specialized in the magnesium alloy products such as the plate, slab, sheet, bar, tube and profile.

We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.

Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.



Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
