Rapid Heat Dissipation: | Ideal For A Broad Range Of Operating Temperatures, From 350 Degrees Fahrenheit To -30 Degrees Fahrenheit | Stability: | No Stress Relief After Machining; No Warps And Is Dent Resistant |
---|---|---|---|
Damping: | Absorbs Vibration For Longer Life, While Retaining Dimensional Stability | Non Magnestic: | Good For Electrical And Computer Applications |
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XYCM can be complied with are as following Table:
DESCRIPTION |
ASTM Alloy Designation & Temper |
ASTM | FEDERAL | AMS | ||
AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
Plate - Extra flat | AZ31B-O | -- | 4382 | |||
Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
AZ80A |
Extruded bars & sections |
precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
ZK60A |
Extruded bars & sections |
precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 |
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm

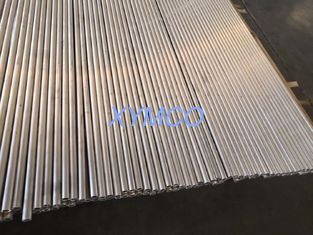

4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
